DBC Series - Zhuhai Vision Medical Technology Co.Ltd (Mindsion)

Disposable

DBC Series

Features and advantages:

1）Infection Control (Sterile & Safe) Single-use, use-and-discard design eliminates cross-infection risk. No reprocessing or sterilization needed — especially valuable for controlling multidrug-resistant infections.
2） Excellent Convenience (Wireless & Portable). Open and ready to use — no cleaning, disinfection, or waiting time required, convenient for bedside use. Supports both wired and wireless connection modes for seamless switching. Wireless & portable form factor improves efficiency in bedside and emergency settings.
3） Excellent Performance HDTL Technology — higher definition, brighter image, lower noise. 120° field of view, 3mm–130mm depth of field. Large bending angles: Up/Down 210°/210° (N/S/V series) or 180°/180° (W/X series) for excellent maneuverability and passability.
4） Economic Benefits No maintenance or repair costs — single-use eliminates complex cleaning, disinfection equipment, and costly repairs. Eliminates reprocessing wait time, improving procedure turnaround and operational efficiency. TCO advantage: single-use bronchoscopes have lower total cost of ownership compared to reusable bronchoscopes. Compatibility advantage: MINDSION's reusable processors are fully compatible with DBC disposable scopes, enabling a low-cost upgrade path — "Seamless Switch, Wireless from the reusable to disposable."
5） Empowering Teaching & Research Safe practice with no burden of equipment damage — enables stress-free training and educational use.

Product Introduction

The DBC Series is MINDSION's line of Wireless & Disposable Flexible Video Bronchoscopes, featuring proprietary HDTL Technology for higher definition, brighter image, and lower noise. The series is designed for single-use clinical airway management, offering both wired and wireless connection modes.

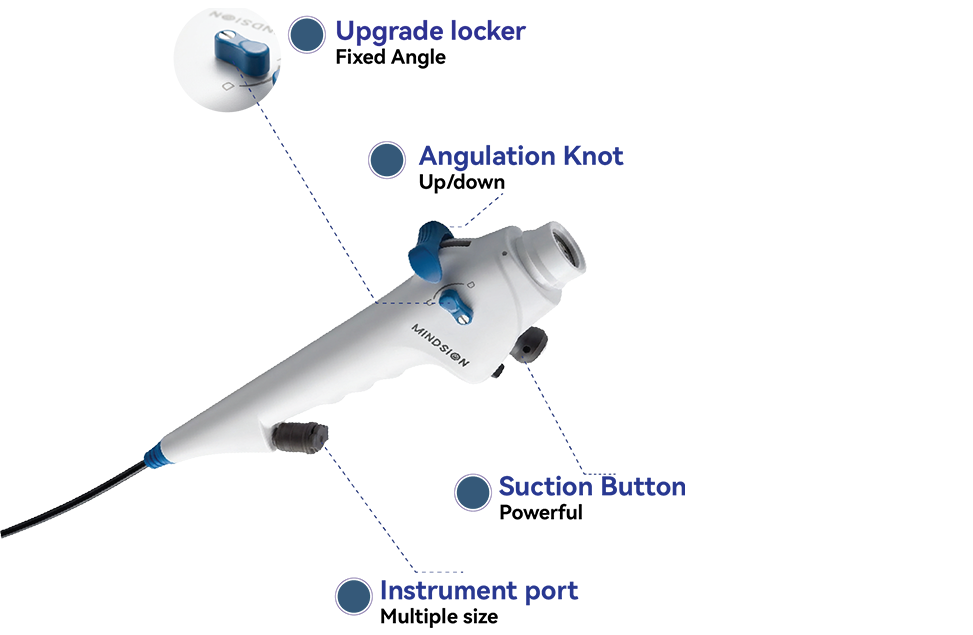

The DBC bronchoscope is composed of: distal end, bending part, insertion part, operation part, and electrical connection part. Key components include:

Up/Down angulation control knob & angle lock (on "30" series models)
Suction button & biopsy valve
Two function buttons (Photo/Video capture, brightness adjustment / image freeze)
Electrical connection port (supports both wired and wireless connection via WT300 wireless transmitter)
Instrument port compatible with stents, balloons, and forceps

Product details

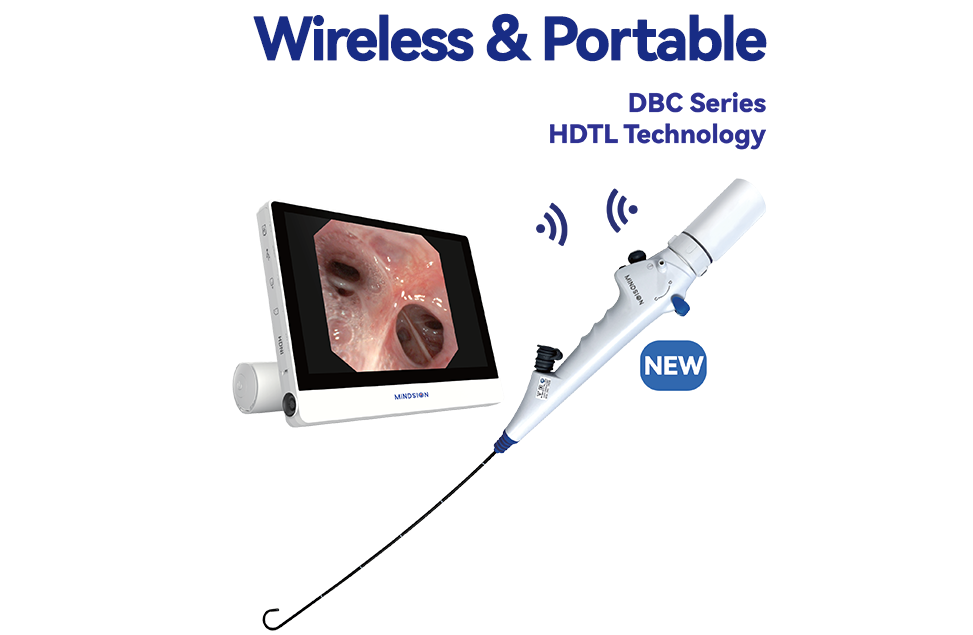

Wireless & Portable

Wireless & Portable Design

The DBC supports both wired and wireless connection modes for seamless switching between setups:

Wireless mode: The disposable bronchoscope catheter connects to a WT200H Wireless Transmitter, which wirelessly transmits the video signal to the display — eliminating cable clutter and enabling full bedside mobility.

Wired mode: The scope connects directly to the processor via a video connection cable for traditional operation.

Seamless Switching: MINDSION's reusable processors are fully compatible with DBC disposable scopes, enabling a low-cost upgrade path from reusable to disposable — "Seamless Switch, Wireless from the reusable to disposable."

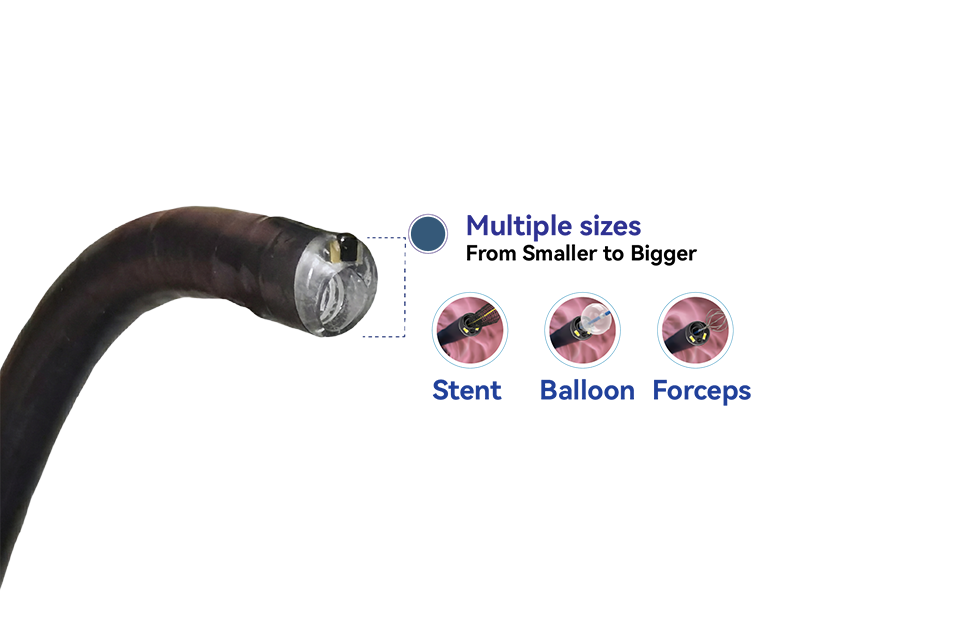

Multiple Sizes for All Needs of Clinical Application

Clinical Application Mapping

The DBC Series is designed to cover the full spectrum of clinical scenarios:

Ultra-fine examination (DBC-N series, Ø2.8 mm): Pediatrics and narrow airway inspection

Standard examination & suction (DBC-S series, Ø3.9 mm / DBC-V series, Ø4.9 mm): Routine diagnostic and therapeutic procedures

Large-channel suction & lavage (DBC-W series, Ø5.2 mm): High-volume aspiration and BAL

Large-channel treatment (DBC-X series, Ø5.8 mm): Complex interventions requiring larger instrument compatibility

The instrument port is compatible with stents, balloons, and forceps, enabling interventional procedures across all sizes
Upgraded Locker (Angle Lock)

The angle lock is a defining upgraded feature of the DBC "30" series models. It is designed to lock the bending part at a fixed angle during procedures, enabling hands-free positioning without the need to continuously hold the angle handle.
